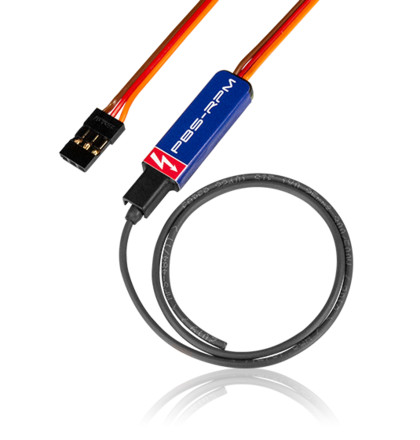

PowerBox PBS-RPM RPM Sensor
PowerBox PBS-RPM RPM Sensor

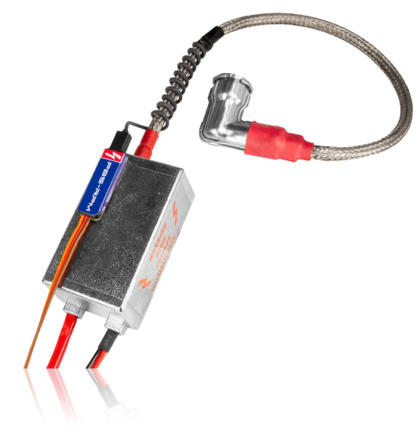

The PowerBox PBS-RPM provides accurate rotational speed detection for two-stroke and four-stroke engines up to 10,000 rpm. Installation is simple: wind the sensor lead around one high-voltage ignition lead. It is Plug'n'Play for the CORE telemetry system and switchable for Jeti, M-Link, and HoTT via the PowerBox Terminal program.
Compact and lightweight at just 5g, the sensor supports PowerBox, Jeti, Multiplex, Graupner, and Futaba systems. Note: not compatible with DA70 engines.
Key Features
| Brand | PowerBox |
| Model | PBS-RPM |
| Product Type | RPM Sensor |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on State) | max. 20mA |
| Supported RC Systems | PowerBox, Jeti, Multiplex, Graupner, Futaba |
| Dimensions | 1.57 x 0.39 x 0.16 in |
| Weight | 0.18 oz |
| Temperature Range | -22°F to +185°F |
| Maximum RPM | 10,000 rpm |
| Compatible Engine Types | Two-stroke, Four-stroke |
Highlights
- Accurate RPM detection up to 10,000 rpm
- Simple installation on ignition leads
- Compatible with multiple telemetry systems
- Compact and lightweight design
