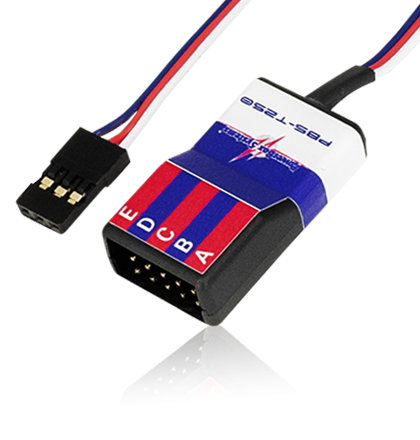

PowerBox PBS-T250 5 Way Temperature Sensor
PowerBox PBS-T250 5 Way Temperature Sensor
The PBS-T250 monitors up to five temperatures simultaneously, making it ideal for tracking cylinder head temperatures on radial engines. It comes with two sensors and supports PowerBox CORE, Jeti, Futaba, and Multiplex telemetry systems.
Compact and lightweight, this sensor measures temperatures up to 250°C and operates on 4.0V to 9.0V with a low current draw.
Key Features
| Brand | PowerBox |
| Product Type | Temperature Sensor |
| Operating Voltage | 4.0V - 9.0V |
| Current Drain (Power-on State) | max. 20mA |
| Supported RC Systems | PowerBox, Jeti, Multiplex, Futaba |
| Dimensions | 1.26 x 0.71 x 0.39 in |
| Weight | 0.25 oz |
| Temperature Range | -22°F to +185°F |
| Maximum Measurable Temperature | 482°F |
| Number of Sensor Inputs | 5 |
| Included Sensors | 2 |
| Compatibility | PowerBox CORE P²BUS, Multiplex M-Link, Jeti EX-Bus, Futaba |
Highlights
- Measures up to five temperatures at once
- Plug-and-play with PowerBox CORE telemetry
- Compact and lightweight design
- Supports multiple RC systems via PowerBox Terminal
Compatibility
Compatible with PowerBox CORE P²BUS, Jeti EX-Bus, Futaba, and Multiplex M-Link telemetry systems. Can be configured using the PowerBox Terminal program.
What's included
- 1x PBS-T250 Temperature Sensor Unit

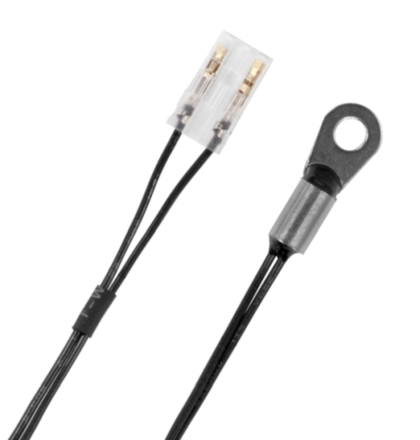

- 2x Temperature Sensors
Frequently asked questions
|
