PowerBox Royal SR2 With Sensor Switch And TFT Display

Name: PowerBox Royal SR2 With Sensor Switch And TFT Display
Brand: PowerBox
Price: 880.0 AUD
Availability: OutOfStock

$880.00 AUD

Prices in AUD, GST included for Australian orders.

Fitment helpNot sure what suits your setup? Ask us before you order.

Supported in AustraliaBacked by pilots who fly the schedule

Not sure what you need?
Send us your model and setup and we'll point you at the right part.

Download manual (PDF)

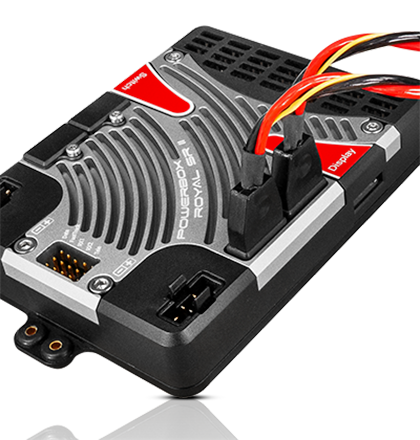

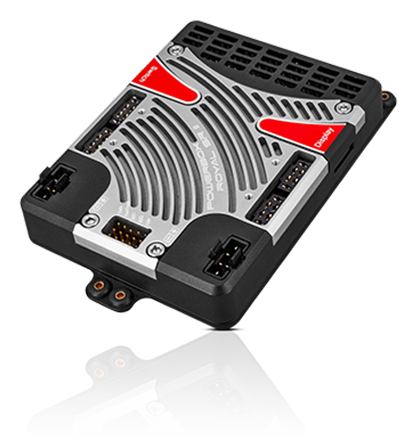

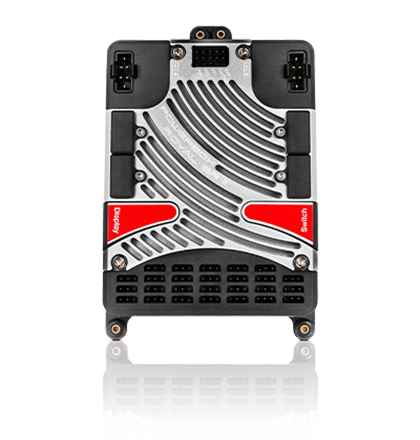

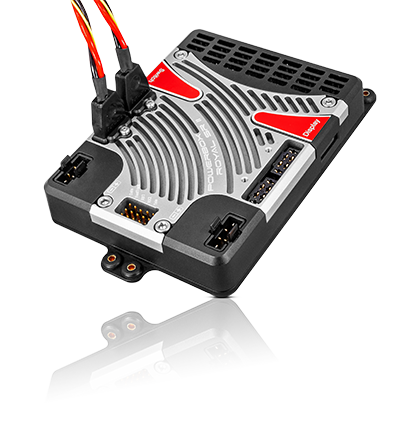

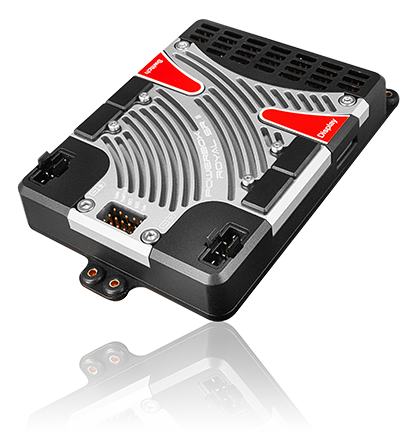

The PowerBox Royal SR2 sets new technical standards with a P² servo bus, 26 channels, a 12-axis gyro, and two pairs of regulators, all housed in a compact aluminum case with an integral heat sink. The full-color TFT screen displays all receiver and power supply data, and the bi-lingual menu system is easily understood even in direct sunlight.

Four independent P²-BUS interfaces support two different voltage levels, allowing standard 6V servos to be combined with high-performance HV types without additional regulator modules. The system includes an automatic servo-matching function, two integrated door sequencers, and optional iGyro SAT connectivity for advanced gyro functionality.

Key Features

Brand	PowerBox
Product Type	Power Management System
Operating Voltage	4.0V - 9.0V
Power Supply	2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current Drain (Power-On)	300mA (with TFT)
Current Drain (Standby)	60µA
Maximum Load Current	Peak 4 x 20A
Drop-Out Voltage	0.3V
Output Voltage	6.0V, 7.4V, 7.8V, unregulated
Signal Input	Serial
Supported RC Systems	PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupner
Receiver Redundancy	SRS
Channels	26
Servo Sockets	26
Programmable Servo Outputs	26
Servo Signal Resolution	0.5µs
Signal Frame Rate	10ms, 12ms, 14ms, 16ms, 18ms
Gyro Regulation	Heading- and Normalmode
Gyro Sensor Type	External iGyro SAT
Number of Sensor Axes	12
Screen	TFT 320x240 Pixel
Integral Door Sequencer	2x
Supported Telemetry Systems	P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions	5.35 x 3.23 x 0.71 in
Weight	5.71 oz
Weight (Sensor Switch)	0.53 oz
Weight (LCD Screen)	1.20 oz
Temperature Range	-30°C to +105°C

Highlights

26 channels
High-performance battery backer with high continuous load capacity
Four P²-BUS outputs with full telemetry support for servos

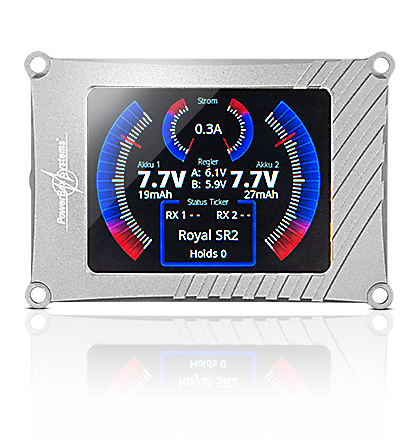

2.4" TFT screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 26 outputs
Auto matching function
Two independent door sequencers with Setup Assistant
Integrated iGyro technology, using the iGyro SAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
Individual gain control for all twelve gyro outputs
Special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Two different voltage levels, separately adjustable for left and right side
Graphic menu diagrams for programming
Fast basic setup procedure using the Assistant
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR DMSS and Graupner HoTT
Transmission of battery, receiver and GPS data
Features controllable from PowerBox and Jeti transmitters
Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
32-bit micro-processor for precise, high-speed signal processing
High-performance machined heat-sink for optimised heat diffusion
Machined, anodised aluminium switch and screen case
Compact dimension

Compatibility

Compatible with PowerBox, Futaba, MPX, Jeti, Spektrum, JR, and Graupner RC systems. Supports P²BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, and X.BUS telemetry protocols. Works with 2S LiPo, 2S LiIon, 2S LiFePo, or 5S NiCd/NiMH batteries.

How to use

Connect the PowerBox Royal SR2 to your receiver and servos using the P²-BUS interfaces or standard PWM via the P²-ServoBridge. Configure settings through the TFT screen's bi-lingual menu or from a compatible PowerBox or Jeti transmitter. Use the Setup Assistant for fast basic configuration of servo matching and door sequencers.

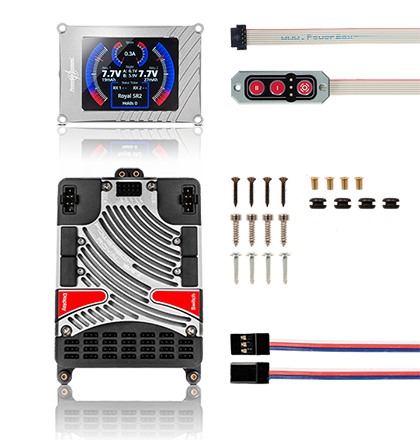

What's included

PowerBox Royal SR2
TFT-Display

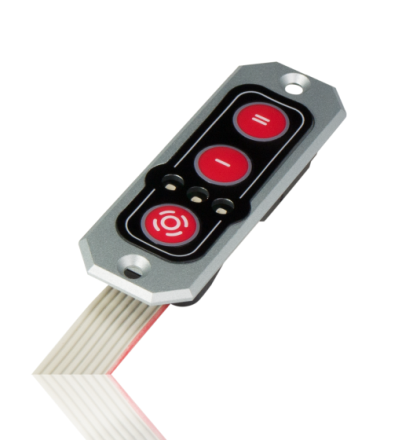

SensorSwitch
2 three-core patch-leads, 180 mm
4 retaining screws
4 rubber grommets / brass spacer sleeves
4 brackets/covers
Operating instructions in German and English

Frequently asked questions

What RC systems are compatible with the PowerBox Royal SR2?

It supports PowerBox, Futaba, MPX, Jeti, Spektrum, JR, and Graupner systems.

How many channels does the PowerBox Royal SR2 have?

It has 26 channels with 26 programmable servo outputs.

Can the PowerBox Royal SR2 be used with high-voltage servos?

Yes, it offers four selectable output voltages: 6.0V, 7.4V, 7.8V, or unregulated, allowing combination of standard and HV servos.

What is included in the box?

The set includes the PowerBox Royal SR2, TFT display, SensorSwitch, two three-core patch-leads (180 mm), four retaining screws, four rubber grommets with brass spacer sleeves, four brackets/covers, and operating instructions.
