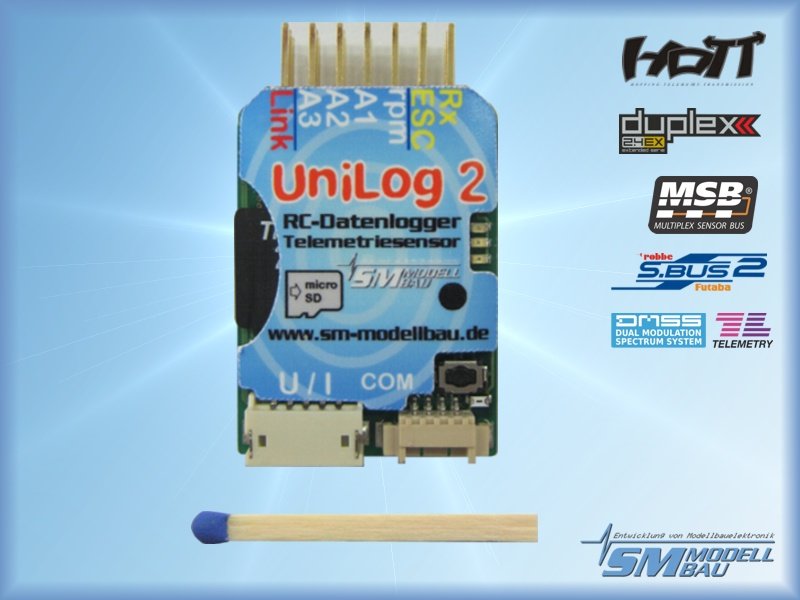

SM ModellBau Unilog 2 RC Data Logger Telemetry Sensor 1-Pack
SM ModellBau Unilog 2 RC Data Logger Telemetry Sensor 1-Pack
The UniLog 2 is a compact and powerful RC data logger and telemetry sensor that records and transmits voltage, current, power, capacity, rpm, temperature, individual cell voltages, altitude, and vario data. It supports multiple 2.4 GHz telemetry systems including Jeti Duplex, Multiplex M-Link, Graupner HoTT, Futaba, JR DMSS, FrSky, and Spektrum (via adapter).
Data is stored on a micro SD card at rates up to 20 Hz, and an integrated barometric sensor provides vario functionality. The device features a real-time clock, single-cell LiPo measurement up to 6s, and is compatible with existing UniLog sensors. Its lightweight and compact design makes it suitable for use in RC aircraft, helicopters, boats, and cars.
Key Features
| Brand | SM ModellBau |
| Product Type | RC Data Logger and Telemetry Sensor |
| Supported Telemetry Systems | Jeti Duplex, Multiplex M-Link, Graupner HoTT, Futaba, JR DMSS, FrSky, Spektrum (via adapter) |
| Recording Rate | 1 Hz to 20 Hz |
| Storage Medium | Micro SD Memory Card |
| Real-Time Clock | Yes (battery life at least 5 years) |
| Single Cell Voltage Measurement | Up to 6s LiPo |
| Current Measurement Range | Up to 400 A (depending on sensor) |
| Voltage Measurement Range | Up to 60 V |
| Temperature Measurement | Up to 3 sensors (PT1000 compatible) |
| Speed Sensor Connection | Yes (Order No. 2560) |
| GPS Logger Connection | Yes |
| Barometric Altitude Sensor | Yes (with vario function) |
| Power Supply | Receiver and/or drive battery |
| Dimensions | Compact and lightweight |
| Weight | Approximately 0.5 oz (15 g) |
Highlights
- Complete measurement of electric drives: current, voltage, power, capacity, speed, and temperature
- Micro SD card for virtually unlimited recording
- Full telemetry support for multiple 2.4 GHz systems
- Internal real-time clock with battery
- Single cell LiPo measurement up to 6s
- Barometric altitude sensor with vario
What's included
- UniLog 2 data logger and telemetry sensor
- Micro SD memory card
- Card reader
