Smoke Systems EL Tele Bridge HUB P²-Bus Distributor 1-Pack
Smoke Systems EL Tele Bridge HUB P²-Bus Distributor 1-Pack

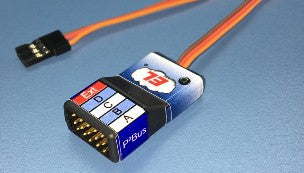

The TeleBridge HUB is a four-way distributor for the P²BUS, enabling the connection of multiple sensors and featuring an extra input for Jeti or JetCAT sensors. It bridges Jeti-compatible sensors to the telemetry bus of the PowerBox CORE, supporting unencrypted EX-BUS or Jeti EX protocols. Configuration is simple via the sensor menu in the CORE transmitter, with no programming device required. The built-in status LED signals readiness, and power is supplied via the receiver if the sensor lacks its own power supply.
This lightweight adapter supports a wide range of tested sensors including Jeti, YGE, Graupner, Kontronik, JetCat, and Altis devices, and can also be connected to the HUB ports A-D for additional Jeti ports.
Key Features
| Brand | Smoke Systems EL |
| Product Type | Telemetry Bridge Hub |
| Compatibility | PowerBox CORE, Jeti EX-BUS, Jeti EX, HoTT ESC, JetCat (v7+), Altis V4+ |
| Number of Ports | 4 (P²-BUS) + 1 (Ext for Jeti/JetCAT) |
| Supported Protocols | Unencrypted EX-BUS, Jeti EX, Simple Text |
| Power Supply | Via receiver (if sensor lacks own power) |
| Status Indicator | Built-in LED |
| Maximum Sensor Values | 15 per sensor |
| Weight | 0.3 oz (estimated) |
Videos
Compatibility
Compatible with PowerBox CORE and sensors supporting unencrypted EX-BUS or Jeti EX protocols. Tested sensors include Jeti Master Spin PRO, YGE 165HVT, Graupner BRUSHLESS CONTROL + T 160A HV ESC BEC, Jeti CentralBox 100/200, Jeti MBar, Jeti MT300 EX, Jeti Malti, Jeti MRPM, Jeti MU3, Jeti SBEC30, SmokeDriver, Kontronik TelME Jeti, JetCat PRO-Interface, Jeti MainSwitch 100/200, Jeti MSpeed, JetCat ECU-V12, Jeti MaxBec 2D plus, and Altis V4+. GPS and date/time values are not supported.
How to use

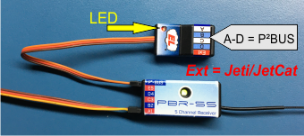

Connect the TeleBridge HUB to the P² bus of the PowerBox CORE via the fixed cable. Plug sensors into ports A-D for P²-BUS devices, or use the Ext port for Jeti-compatible sensors. On the CORE transmitter, tap and hold the display, press [Rescan sensors] to detect the TeleBridge, then read in sensor data by scanning once. Select up to 15 values per sensor for display and set thresholds or alarms as usual.
What's included
- 1x TeleBridge HUB
- 1x Fixed connection cable
